Stepper Motor NEMA23 2Nm
[23H276-30-48]

 46.92EUR - 66.24EUR

NEMA Size 23 (57mm) Hybrid Stepper Motor 2-phase 1.8 degreer for performance machine where torque and high speed with is necessary. This motor offer in a small size, torque and speed.

Series
Model



Holding Torque
N.m +-10%

Rated
Current
A/phase

Resistance
ohm/phase +-10%

Inductance
mH/phase +-20%

Rotor Inertia
(g.cm 2 )

Motor
Weight
(kg)

Motor
Lenth
(mm)

Lead
Wire
(NO.)

23H276-30-8A

Parallel

2.0

4.2

0.46

2.2

480

1.00

76

8

Series

2.0

2.1

1.84

8.8

Unipolar

1.4

3.0

0.92

2.2

Sizes diagram

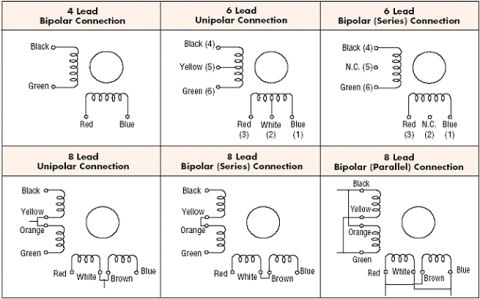

Connection diagram

Connection diagram

Wiring schemes

  • Bipolar paralel connection ⇒ Maximum torque, current and speed.
  • Bipolar series connection ⇒ Maximum torque, Reduced current, Reduced speed.
  • Unipolar paralel connection ⇒ Maximum torque, current and speed.

QuantityPrice
1+ 66.24EUR
3+ 46.92EUR
